ORv3 48V Power Architecture
The voltage migration that cut copper weight by four on GPU racks.
Why 12V lost the GPU rack
ORv3 48V power architecture replaces the 12V intermediate bus for GPU trays because current per cabinet has become the limiting variable. At 120 kW per AI cabinet, a 12V delivery path would force roughly 10,000 A through busbars and connectors; moving to 48V cuts that to about 2,500 A and reduces copper conductor weight by roughly four times.
Procurement teams should treat 48V as a rack-level decision, not a component swap. It changes CRPS module selection, OCP Open Rack V3 BBU shelf requirements, and busway sizing before facility power is committed. Global transformer lead times reached 160 weeks, so early 48V busbar and rack PDU decisions protect build schedules.

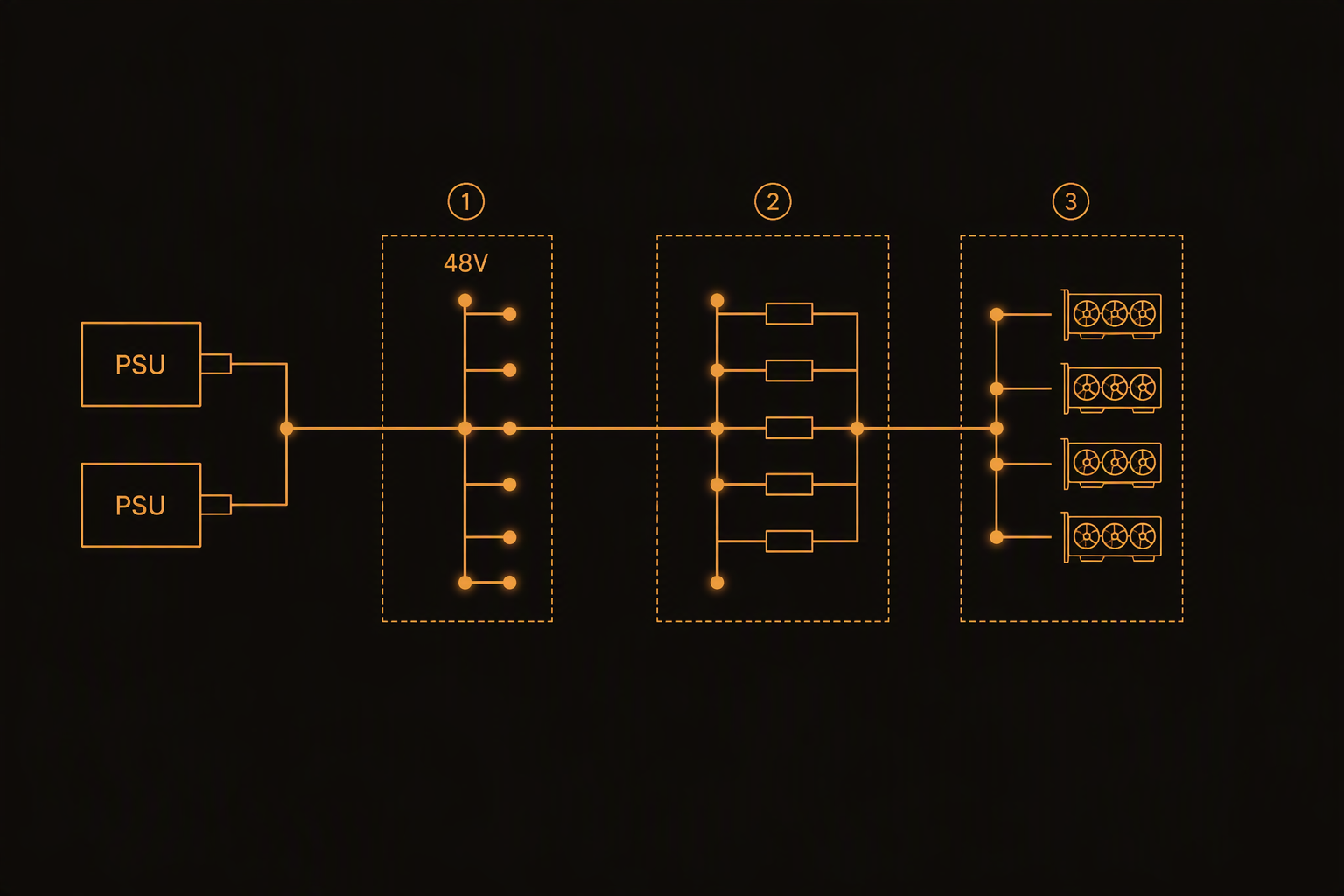

Reading the 48V single-line
In a 48V ORv3 rack, utility AC lands at the rack PDU, then feeds a shelf of M-CRPS rectifiers. The HPE 3200W M-CRPS Titanium supply is a common building block: 80 PLUS Titanium certification means 96% efficiency at half load, reducing waste heat inside the cabinet. Billing-grade rack PDU metering holds +/-1% accuracy on the AC side.
Downstream, the 48V bus connects to the OCP Open Rack V3 BBU Shelf Rev 1.1 for hold-up, then to GPU trays. For high-density aisles, busway systems up to 6300 A—type-tested to IEC 61439-6—carry the upstream feed, so the rack-level 48V decision is mirrored in the distribution backbone. BBU lithium packs ship as UN38.3 Class 9 sea freight, so logistics must be sequenced with rack integration. Cooling CDUs span 300 kW to 1.2 MW, but the electrical single-line still starts at 48V.
- 48V ORv3 bus replaces 12V for GPU trays in high-density racks
- Busway feeder rated up to 6300 A, IEC 61439-6 type tested
- OCP Open Rack V3 BBU Shelf Rev 1.1 runs 48V architecture
- HPE 3200W M-CRPS Titanium supply operates 96% efficient at half load
12V vs 48V architecture comparison
| Parameter | 12V Architecture | 48V ORv3 |
|---|---|---|
| Intermediate bus voltage | 12 VDC | 48 VDC |
| Current for 30 kW payload | 2,500 A | 625 A |
| Current for 120 kW AI cabinet | 10,000 A approx. | 2,500 A approx. |
| Copper conductor cross-section | Baseline 4x larger | 1x baseline |
| OCP rack standard | Legacy 12V trays | OCP Open Rack V3 Rev 1.1 |
| BBU shelf architecture | Discrete 12V packs | 48V ORv3 BBU shelf |
| CRPS example | — | HPE 3200W M-CRPS Titanium |
| Efficiency at half load | — | 96% (80 PLUS Titanium) |
| Connector thermal load | High at 10 kA | Lower current density |
Migration checkpoints
- AI racks crossing 120 kW per cabinet force liquid cooling and 48V delivery (Wedbush 2026).
- OCP Open Rack V3 BBU Shelf Rev 1.1 defines 48V hold-up at rack level.
- HPE 3200W M-CRPS Titanium supplies run 96% efficient at half load.
- Type-tested IEC 61439-6 busway scales to 6300 A for high-density aisles.
Next step
Specify the 48V rack from CRPS to busway—before the 12V backlog becomes a stranded asset.
